Features and Specifications
TDR-3200
The NextWave TDR-3200 is an all-purpose standard definition digital
set top box. The TDR-3200 is purpose-built to satisfy the demands of
professional antenna installers. There is no compromise between high
quality, extensive features and a competitive price.

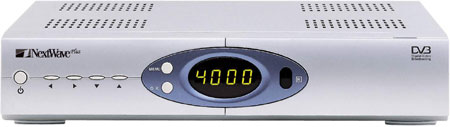

The NextWave TDR-3200 features good looking front facia with a
heavy-duty steel case. It provides a wealth of connection options for
audio and video signals, including dual SCART sockets, S-video and
coaxial digital audio interface (S/PDIF). Digital audio output is
available in both Dolby Digital and MPEG audio formats for connection to
home theatre systems.

Product Specifications
| Aerial Tuner |
Specifications |
Input Frequency
|
UHF 28-69 [520MHz - 820MHz], VHF 6-12 [174MHz -
230MHz]
|
| RF Input level |
.85 - .25dBm |
| Demodulator |
Specifications |
Waveform
|
QPSK, 16 QAM and 64 QAM |
| Bit Rate |
31.67 Mbps |
| OFDM Spectrum |
2K and 8K mode carrier Non-hierarchical /
Hierarchical |
| Guard interval |
1/32, 1/16, 1/8, 1/4 |
| MPEG |
Specifications |
Transport Stream
|
MPEG-2 |
| Input Rate |
Max. 88Mbps [parallel] |
| Video |
MPEG-2 Main Profile / Main level |
| Audio |
MPEG-1 layer 1 & 2 |
| Video |
Specifications |
CVBS/RGB output level
|
1Vp-p into 75ohm |
| Video Format |
4:3, 16:9 |
| Audio |
Specifications |
Sampling Frequency
|
32/44.1/48 kHz |
| Frequency Response |
20Hz to 20kHZ HiFi Quality Stereo |
| Audio output level |
2V rms max. |
| RF Modulator |
Specifications |
Output Standards
|
PAL B/G, I, D/K, NTSC, SECAM |
| Output Frequency |
UHF 21 ~ 69 |
| Connectors |
Specifications |
| Aerial Tuner |
IEC 169-2 Female [ch6~69] |
| Loop Out |
IEC 169-2 Male [ch0~69] |
| Loop In |
IEC 169-2 Female [ch0~69] |
| RF Modulator |
IEC 169-2 Male/Female [ch21~69] |
| TV SCART |
RGB, CVBS, Audio L/R, Video [V/C] |
| VCR SCART |
RGB, CVBS, Audio L/R, Video [V/C] |
| RCA Jack |
Stereo Audio L/R, CVBS |
| Serial Port |
RS232C 9pin D-sub Male |
| S-VHS port |
Mini - DIN |
| S/PDIF (Coaxial) |
*Dolby Digital Bitstream Output* |
| General Data |
Specifications |
| Supply Voltage |
SMPS, Free Voltage [9D~245 AC, 50/60Hz] |
| Power Consumption |
Max 25W |
| Operating temp. |
0 C - 45 C |
| Dimensions |
300 [w] X 210 [d] X 62 [h] |
| Weight |
2.1Kg |
