Features and Specifications

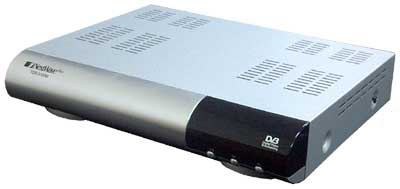

The NextWave TDR-3100 is a stylish, full featured standard definition
digital set top box. There is no compromise between high quality,
extensive features and a competitive price.
Despite its size, NextWave provides a wealth of connection options for
audio and video signals, catering for all display types. Digital audio
output is available in both Dolby Digital and MPEG audio formats for
connection to home theatre systems.

Product Specifications
| Tuner/Channel |
Specifications |
| Input Connector |
F-type, IEC Connector, Female |
| Frequency Range |
470MHz to 862MHz(UHF), 174MHz to 230 MHz(VHF) |
| Input Impedance |
75 ohm unbalanced |
| Signal Level |
-20 to -85dBm |
| Demodulation |
QPSK, 16QAM and 64QAM |
| Bit Rate |
31.67Mbps |
| OFDM Spectrum |
2k and 8k mode carrier,
Non-Hierarchical/Hierarchical |
| Guard Interval |
1/32, 1/16, 1/8, 1/4 |
| A/V Decoding |
Specifications |
| Transport Stream |
MPEG-2 JSO/1EC13818 Transport stream specification |
| Profile Level |
MPEG-2 MP@ML |
| Input Rate |
60 Mbit/s Max |
| Aspect Ratio |
4:3, 16:9 |
| Video Resolution |
720 x 576 |
| Audio Decoding |
Audio Decoding MPEG/MusiCam Layer I & II |
| Audio Mode |
Single channel / Dual channel Joint stereo / Stereo |
| Sampling |
32, 44.1 and 48KHz |
| Memory |
Specifications |
| Main Processor |
IBM Power PC 405D2 (350 MIPS) |
| Flash Memory |
1Mbyte (Asynchronous) |
| Program SDRAM |
8Mbyte |
| Outputs |
Specifications |
| Video |
RCA Video Output (CVBS) TV Scart (CVBS & RGB) |
|
S-VHS (4 pin mini-DIN) |
| Audio R/L |
RCA & TV Scart volume and Mute Control
(Resolution 2Obit DAC, max 2Vrms) |
| S/PDIF |
RCA Digital Audio output (Dolby Digital and MPEG) |
| RS232 Connector |
Software Upgrade Port Transfer rate 115,200 bps, 9pm
D-sub male Type |
| Power Supply |
Specifications |
| Input Voltage |
90 245V AC 50/60Hz |
| Type |
SMPS |
| Power Consumption |
Max. 25W |
| Protection |
Separate internal fuse. The input shall have
lightning Protection |
| Physical Specs |
Specifications |
| Operating temperature |
0 C to +45 C |
| Storage temperature |
-10 C to +70 C |
| Humidity |
5% - 95% RH (Non-Condensing) |
| Size (WxDxH) |
255mm x 185mm x 40mm |
| Weight |
Approx. 2.0kg |
