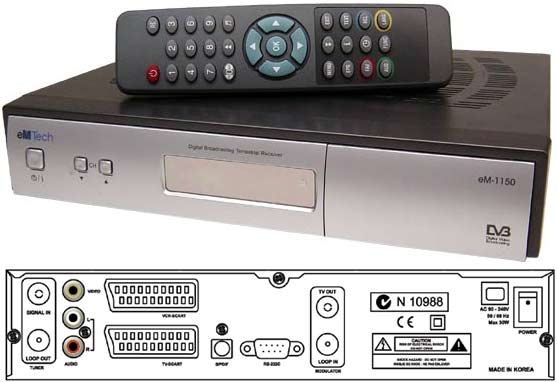

Homecast em 1150

Features and Specifications


RF Input


  • Frequency............................................................160 ~ 860 MHz
    Loop Through.......................................................51 ~ 860 MHz
    Bandwidth............................................................7MHz
    Connector.............................................................IEC-Female
    Demodulator.........................................................IEC-Female
    FFT mode.............................................................2K,8K
    Constellation........................................................QPSK,16QAM,64QAM
    Guard Interval......................................................1/4,1/8,1/16,1/32
    Inner Coding Rate................................................1/2,2/3,3/4,5/6,7/8


    Video Output

  • Formats................................................................MP@ML
    Aspect Ratio.........................................................4:3 , 14:3, 16:9
    Picture Resolution................................................720 ×576 , 720 ×480
    Output System......................................................NTSC/PAL
    Connector.............................................................RCA/SCART
    Composite out via.................................................RCA and Scart
    RGB out via...........................................................Scart
    Supports Teletext via...........................................OSD and Vertical block insertion
    Supports...............................................................EPG
    Full channel edit features
    256 colour menus

    Audio Output

  • Formats                                                               MPEG (Layer1&2)
    Sample Rate                                                       32/44.1/48 KHz
    Mode                                                                   Mono/Stereo/Dual
    Connector                                                           RCA/SCART
    TO SLINK                                                             optical output

    RF Modulator

  • System                                                                PAL-I/B/D/G/K(NTSC/PAL-M)
    Channel                                                              Ch.21~69
    Return Loss                                                         3 dB max.75 Ohms
    Audio Mono
    Connector IEC                                                     (Female-type)
    Bypass Bandwidth                                               45~862MHz
    Communication port                                           (RS-232) for software upgrade

    Power Supply

  • I
    nput Voltage:                                                     90 ~ 240 VAC 50 ~ 60 Hz
    Consumption:                                                     (Max.) 25 W


    Dimensions

  • W ×D ×H (mm)                                                    280 x 220 x 60
    Weight (Kg)                                                        2.1Kg


    General Data
  •
    Operating Temperature:                                     5 ~ 40
    Storage Temperature:                                        4 ~ 6
    5

    Accessories

  • 1xRemote control and batteries
    1xA/V RCA Cable
    1xUser’s Manual
